ECMASONRYCOLUMN - Masonry Column Design

This part of user manual describes how to use ECMASONRYCOLUMN for the design of Masonry Column. ECPlus applications are designed as wizard type which is a step by step guided input procedure. If you are new to ECPlus applications, click here for general guidance.

Prerequisites: The user is expected to have a basic understanding of foundation design concepts.
The minimum input data required to use this application is as follows:

• ❶ Dimensions of masonry column
• ❷ Masonry types and Masonry construction types

Following sections are presented with various input pages of ECMASONRYCOLUMN application with descriptions:

---

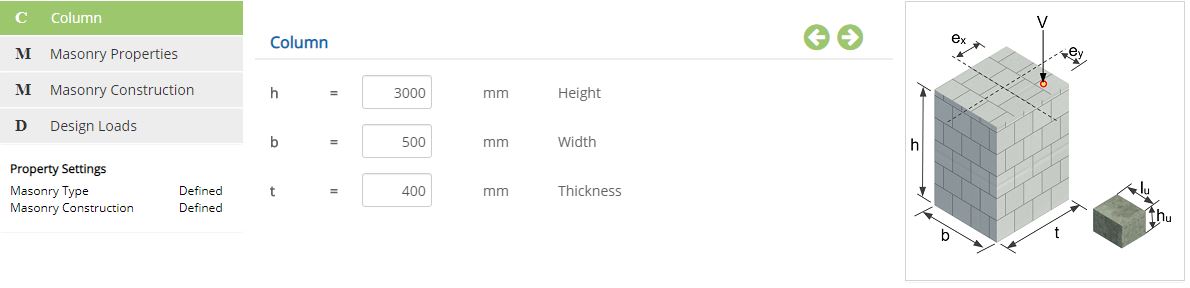

Column

This page allows to enter the dimensions of the masonry column.

Height - h

Enter the overall height of the masonry column.
↔ Range: 1000 to 6000 mm

Width - b

Enter the width of the masonry column.
↔ Range: 150 to 2000 mm

Thickness - t

Enter the thickness of the masonry column.
↔ Range: 150 to 2000 mm

---

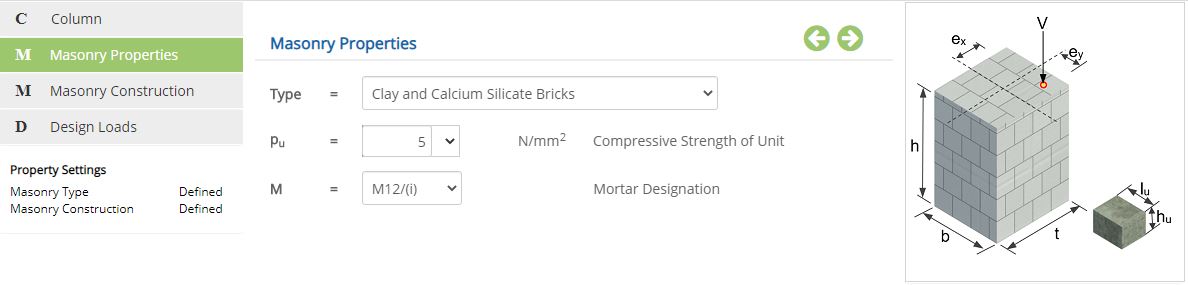

Masonry Properties

This page allows to enter the properties of the masonry such as type of masonry, compressive strength and mortar design, if define masonry type is checked in Property Settings.

Type

Select the type of bricks / blocks used for the masonry column.

Compressive Strength of Unit - p_u

Select / Enter the compressive strength of the selected unit.
↔ Range: 5 to 150 N/mm²

Mortar Designation - M

Select the mortar designation from the drop down list.

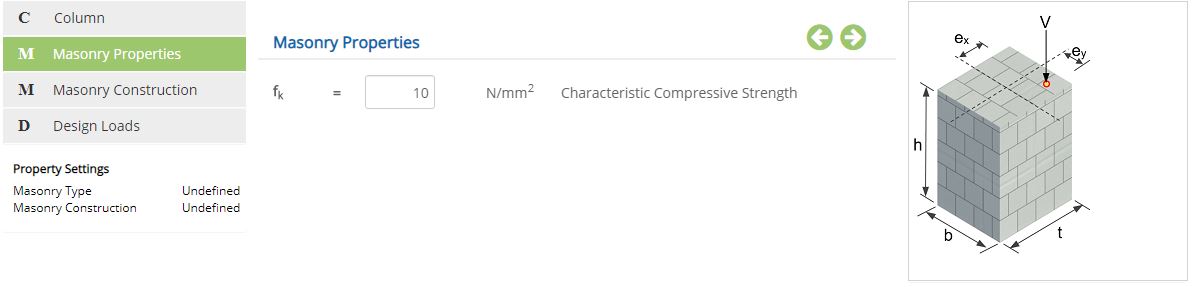

This page allows to enter the characteristic compressive strength, if define masonry type is unchecked in Property Settings.

Characteristic Compressive Strength - f_k

Enter the characteristic compressive strength of masonry.
↔ Range: 1 to 50 N/mm²

---

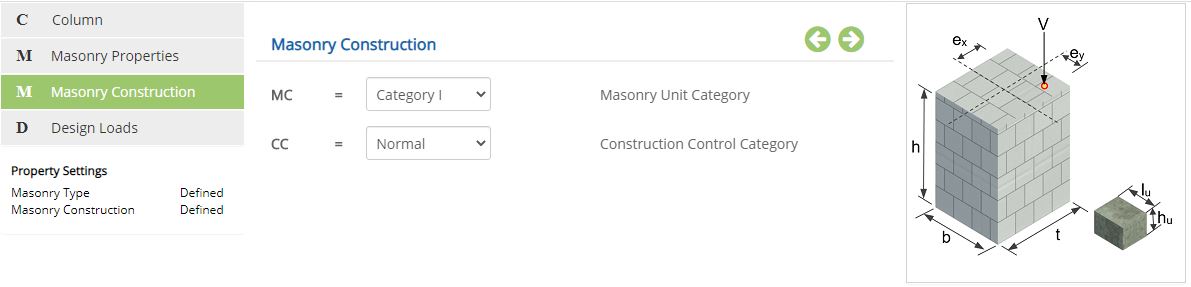

Masonry Construction

This page allows to select the category for masonry unit and construction control, if define masonry construction is checked in Property Settings.

Masonry Unit Category - MC

Select the masonry unit category from the drop down list.

Construction Control Category - CC

Select the construction control category from the drop down list.

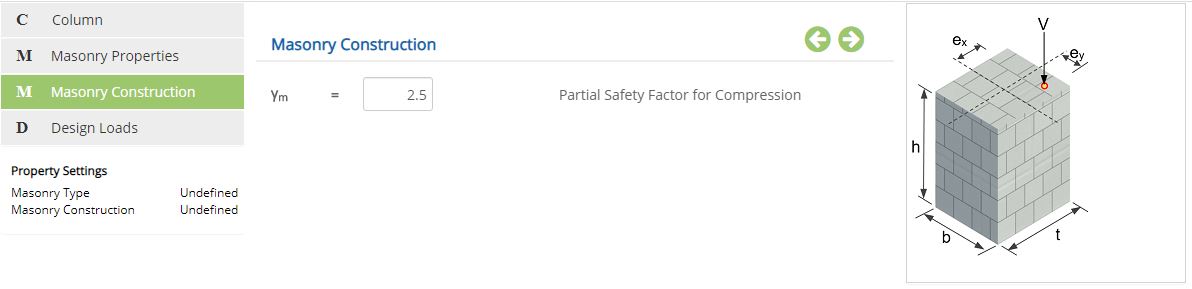

This page allows to enter partial safety factor for compression, if define masonry construction is unchecked in Property Settings.

Partial Safety Factor for Compression - γ_m

Enter the partial safety factor for compression.
↔ Range: 1 to 5

---

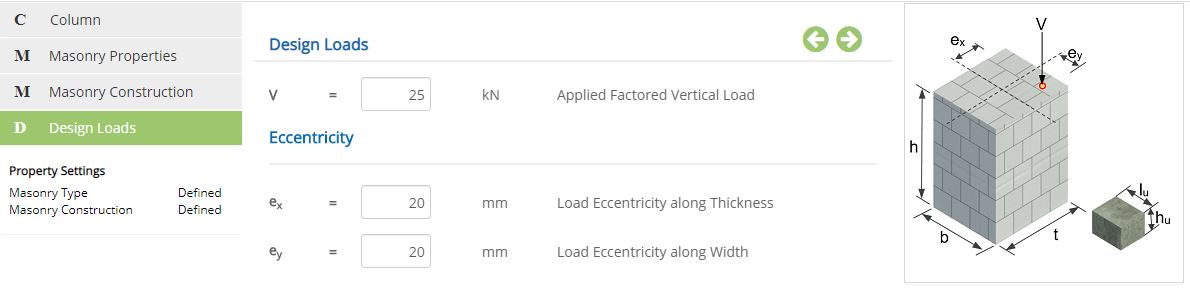

Design Loads

This page allows to enter design load and eccentricity for the calculation.

Applied Factored Vertical Load - V

Enter the factored vertical load to be applied over the masonry column.
↔ Range: 0 to 15000 kN

Load Eccentricity along Thickness - e_x

Enter the eccentricity of load along thickness of the masonry column.
↔ Range: -1000 to 1000 mm

Load Eccentricity along Width - e_y

Enter the eccentricity of load along width of the masonry column.
↔ Range: -1000 to 1000 mm

---

Design Setting

Setting for Design Data such as defining masonry type and masonry construction are presented in this section. This setting pop-up can be accessed by clicking the bottom panel below the left navigation.

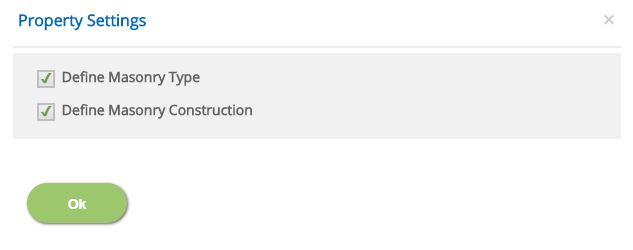

Property Settings

☐   Define Masonry Type

Check this box to select the masonry properties as per Code provisions. On unchecking, enter characteristic compressive strength value manually in Masonry Properties menu.

☐   Define Masonry Construction

Check this box to select the masonry construction as per Code provisions. On unchecking, enter partial safety factor for compression value manually in Masonry Construction menu.

---

Error Handling

Errors and Warnings are generated to prevent any inadvertent error in the input data. This section describes how to handle the errors and warnings. These errors are displayed at the bottom of the input page when the data in one or more input fields invalidate each other.
